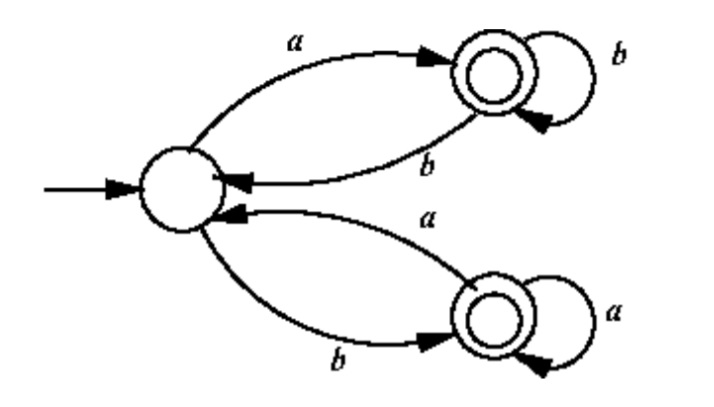

Which one of the following regular expressions correctly represents the language of the finite automaton given below?
A.
ab*bab*+ba*aba*
B.
(ab*b)*ab*+(ba*a)*ba*
C.
(ab*b+ba*a)*(a*+b*)
D.
(ba*a+ab*b)*(ab*+ba*)
Solution:
Minimal strings accepted by the given finite automata are 'a' and 'b'. Option A is not accepting the minimal strings.
Option B and Option C can generate string 'ab' which is not accepted by the given FA.
Option D is the correct R.E for the given FA.
